CJM290Q
Product CJM series light lathe products

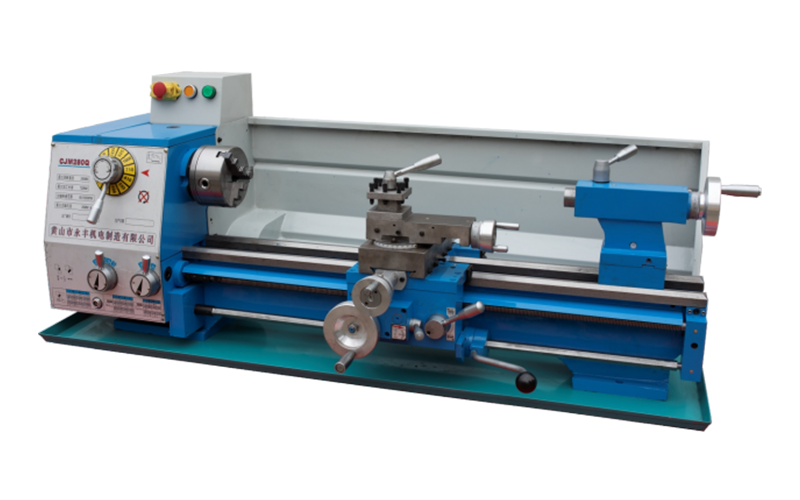

CJM290Q

Product features

  Full gears driven in the headstock, with 12 steps of cyclic speed-changing.

  Feeding box with 12 steps of variable speeds , covering common threading pitches .

  Longitudinal & cross auto feeding adopts inter-lock structure with good safety.

◆  Two V-type guideway with high accuracy and rigidity.

◆  Industrial lathe operation rod;Camlocked tailstock.


  • Parameter
  • Machine tool accessories
  • External dimensions
  • Cooperation

Technical parameters

Model


CJM290Q/500

CJM290Q/700

Max. swing over bed

290mm

Max. work-piece length

500mm

700mm

Max. swing over carriage

190mm

Main spindle diameter

26mm

Main spindle taper

MT.4#

Max. cross travel of carriage

160cm

Max. travel longitudinal of toolpost

70cm

Metric threads range/ No

0.25 ~ 5.0mm/ 18

Imperial threads range/ No

4 ~96T. P. I/ 36

Module threads range/ No

0.35 ~2. 5M. P/ 14

Diametrical threading range/ No

7 ~96D. P/24

Toolpost longitudinal feeding per spindle rotation

0.035 ~0. 375mm/ r

Toolpost cross feeding per spindle rotation

0.0175 ~0. 188mm/ r

Max. travel of tailstock sleeve

75mm

Tailstock sleeve taper

MT.3#

Spindle speed steps

12

Main Spindle speed scope

80 ~ 1600 rpm

Main motor power

750W

Net weights/Gross weights

170/ 190kg

195/225kg

Overall dimensions( L*W* H)

107× 57× 57cm

127× 57× 57cm

Packing dimensions (L*W* H)

120×61×69cm

140×61×69cm


Stamdard accessories

Optional accessories

3 -jaw chuck

Φ125

Chip tray

Machine Base

Belt

O type 620

Steady rest

Follow rest

Dead centers

MT.3#,4#

4 -jaw chuck  Φ125/ Φ160

Flange plateΦ125/ Φ160

Chuck spanner

1  piece

Face Plate  Φ190

Thread dial indicator

Allen wrench

4#,5#,6#

Special optional change gears( 12)

Live center

Stud dead

12 - 14; 17 - 19

Coolant

Digital readout

Changing gears

36T

Work light




Product features

  Full gears driven in the headstock, with 12 steps of cyclic speed-changing.

  Feeding box with 12 steps of variable speeds covering common threading pitches .

  Longitudinal & cross auto feeding adopts inter-lock structure with good safety.

◆  Two V-type guideway with high accuracy and rigidity.

◆  Industrial lathe operation rod;Camlocked tailstock.


Kind Tips:The products will be improved and updated continously. The changes shall not be noticed additionally. Due to the di?erent con?guration requirements , the machines pictures and physical objects may be di?erent , and the physical machines prevail.
